This article is intended to provide you with answers to Frequently Asked Questions (FAQ). In this article we cover as much of the what, why, and how of purchasing, implementing, and using your YubiKey. We hope that after reading this you will have a greater understanding of how to use the YubiKey.
Table of contents
How do I set up my YubiKey with a service?
Is it important to have a spare key?
What happens if I lose my YubiKey?
How do I know if the YubiKey is compatible with my services?
Can I use my YubiKey to protect my computer login?
Can I use a YubiKey with my iPhone?
Can I use a YubiKey with my iPad?
Does Yubico offer an education discount?
Is the YubiKey I purchased genuine?
Can I upgrade my YubiKey's firmware?
What is the YubiKey's account storage limit?
How do I use Yubico Authenticator and YubiKey Manager?
My YubiKey is not working, what should I do?
My YubiKey isn't working over NFC, what should I do?
Where can I learn more about YubiKeys?
___________________________________________
What is a YubiKey?
The YubiKey is a form of two-factor authentication (2FA) that functions as an extra layer of security for your online accounts by providing a strong phishing defense using multi-protocol capabilities that can secure legacy and modern systems.
Two-factor authentication is a method to confirm a user’s claimed online identity by using a combination of two different types of factors. Factors used for 2FA include something that you know (e.g. password or PIN), something that you have (e.g. a security key or phone) or something that you are (e.g. facial recognition). To learn more about two-factor authentication, refer to this page.
With a YubiKey, you simply register it to your account and then when you log in, you are prompted to input your login credentials (username+password) and use your YubiKey (plugged into a USB-port or scanned via NFC). Both login credentials and the YubiKey are required at login, which ensure that this physical layer of protection prevents many account takeovers that can be done virtually.

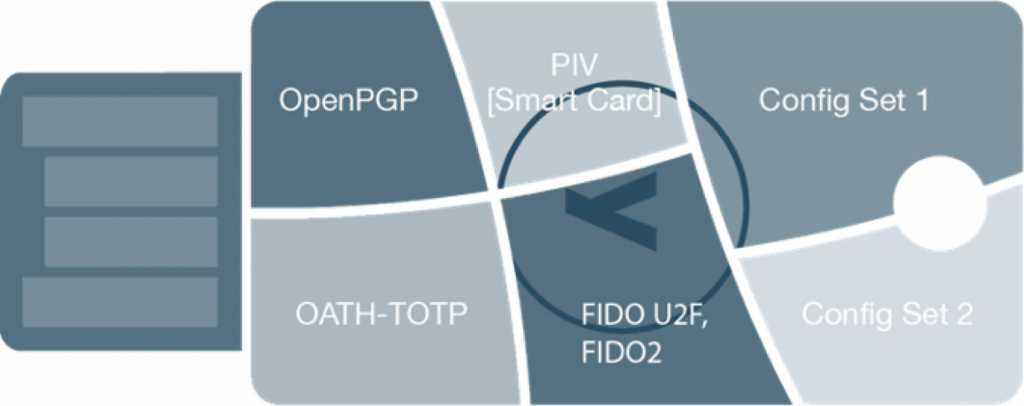

A single YubiKey has multiple functions for securely authenticating into your email, online services, apps, computers, and even physical spaces. The versatility of the YubiKey requires no software installation or battery and therefore it is ready to use directly out of the package. Just login to the service you want to secure and register the key with your account, utilizing whichever security protocol(s) the service supports.
___________________________________________
Which YubiKey should I buy?
You should select your YubiKey based on the services (e.g. websites and/or applications) and devices you want to use the key with. For additional assistance choosing the right YubiKey, refer to How to select the correct YubiKey.
___________________________________________
How do I set up my YubiKey with a service?
Refer to the Yubico setup page for instructions on how to setup your YubiKey with a service or follow the guide below.
The YubiKey works with hundreds of enterprise, developer and consumer applications out-of-the-box, and with no client software required. Furthermore, as it is up to the service provider on how they implement support for the YubiKey, the setup instructions differ from service to service. In the step-by-step instructions below, the most common way of registering your YubiKey with a service is covered.
Tip: For optimal user experience, the initial setup of your YubiKey should be completed on a computer. Additionally, setting up both your primary and secondary YubiKey at the same time is highly recommended. For more information on spare keys, see this page.
-
Have your YubiKey accessible as well as any spare keys
-
Log in to the service (e.g. website or application) you want to add the YubiKey to - make sure the service supports YubiKeys
-
Find the account settings of the service and then look for security. From there, look for an option for two-factor authentication, two-step verification, multi-factor authentication or adding security keys.
-
Follow the instructions provided by the service
-
Register your primary YubiKey and any spare keys
You can find more tailored guides on how to set up your YubiKey in the Works with YubiKey catalog. Simply search for the service you want to secure, click it, and then you will be forwarded to that specific service’s page in the catalog. Here you can also read more about compatible YubiKeys, setup instructions, and technical specifications, among other useful information.
___________________________________________
Where can I buy YubiKeys?
There are several different places you can purchase YubiKeys. Below are our most popular purchasing options:
___________________________________________
Is it important to have a spare key?
It is highly recommended to have more than one key. This way, one key can be used as a primary key, and the other can be used as a spare key, just as you would for your house or car.
Having a spare key offers the assurance that if you lose your primary key, you will not be without access to critical accounts when needing them most. In other words, with a spare key, you have no need to fear being locked out of accounts and no need to go through a lengthy recovery and identity verification process to regain access to each account.
There are a few ways to register a spare key, and you should register your spare key at the same time as your primary key. The process is different depending on if the service supports FIDO2/passkeys, time-based one-time passwords (e.g. authenticator apps), or another another security protocol.
To see which security protocols the service or application supports, refer to the Works with YubiKey Catalog. A good point to keep in mind is that any service that supports FIDO2/passkeys, spare keys can be registered exactly the same way as your the primary key.
If the service supports time-based one-time passwords (e.g. authenticator apps) which requires the use of the Yubico Authenticator application to generate codes to login, then the process is a bit different. Refer to Using your YubiKey with authenticator codes for more information.
(1) The form factor does not need to be the same for your primary and any spare keys. For example, your primary key may be a YubiKey 5C Nano. Your spare could be a YubiKey 5C NFC (for easier mobility, or so that you can authenticate on a mobile device over NFC), or your spare could be a YubiKey 5Ci to cover an older iPad or iPhone that only supports Lightning for connectivity.
(2) Your spare key should be from the same product family as your primary key. For example, if the Security Key Series covers all of your use cases (e.g. FIDO2/passkeys only), there is no benefit to getting a YubiKey 5 Series as your spare key. Similarly, if you require additional protocols and therefore chose a YubiKey 5 Series as your primary key, any spare keys should also be from the YubiKey 5 Series. In this scenario, the Security Key Series cannot be set up as a backup for any other security protocols, for example anywhere that you registered your primary key with time-based one-time passwords (e.g. authenticator apps), the Security Key Series does not support this function.
___________________________________________
What are the differences between the YubiKey 5 Series / Security Key Series / YubiKey 5 FIPS Series / YubiKey Bio - FIDO edition?
YubiKey 5 Series
The YubiKey 5 Series is a hardware-based authentication solution that provides superior defense against account takeovers remotely, enables compliance, and is the series with the support for the most security protocols. If you are unsure which key to purchase, the YubiKey 5 Series is likely your best choice.
The YubiKey 5 Series supports the following security features and protocols:
TOTP (time-based one-time passwords, e.g. authenticator app)
HOTP (hash-based one-time passwords)
Note: Whether a service or application supports the YubiKey for authentication and/or which security protocol that service/application chooses to support, is outside of Yubico's control and entirely up to the service or application. Yubico offers complimentary assistance and resources to companies choosing to integrate YubiKey support into their solution here.
Security Key Series
The Security Key Series is FIDO-only, supporting the following protocols:
Refer to the Works with YubiKey catalog to see if the services you use support either of these protocols. If the Security Key Series is not compatible with the services you want to secure, the YubiKey 5 Series should be used instead. Additionally, consider the following:
The Security Key Series has limited support of the following functions:
*The Security Key Series can be used with passwordless login and Entra ID.
**The Security Key Series is FIDO only and is not capable of handling time-based one-time passwords (e.g. authenticator codes) within Yubico Authenticator. Yubico Authenticator can be used to manage passkeys on the Security Key Series, reset the Security Key Series, or set/change the FIDO PIN, but authenticator app accounts cannot be stored on the Security Key Series.
YubiKey 5 FIPS Series
FIPS stands for the Federal Information Processing Standard and is a US government computer security standard that specifies requirements for cryptographic modules. Essentially, FIPS validates that cryptographic devices meet the US government requirements. Moreover, FIPS 140 only applies to the US government or groups doing business with the US government that also have this requirement. You can learn more about FIPS here.
The YubiKey 5 FIPS Series supports the following security features and protocols:
TOTP (time-based one-time passwords, e.g. authenticator app)
HOTP (hash-based one-time passwords)
FIPS-validated hardware isn't inherently more secure that non-FIPS-validated hardware, and one of the primary drawbacks of FIPS-validated hardware is that the validation process takes a long time, hence teh firmware in this series is slower to adopt new features and functions compared to other hardware authenticators, such as the YubiKey 5 Series. FIPS-validated hardware is not recommended for consumers, or business that don't explicitly require FIPS-validated hardware.
For everyday use with your online accounts, the YubiKey 5 Series is the optimal choice.
YubiKey Bio - FIDO Edition
The YubiKey Bio - FIDO Edition does not have NFC functionality and only supports the following protocols:
It is important to highlight that not all services have support for FIDO2 or FIDO U2F and the YubiKey Bio - FIDO Edition works best on desktop and modern cloud-first environments. Refer to the Works with YubiKey catalog to see if the services you are trying to secure are compatible. If the YubiKey Bio - FIDO Edition is not compatible with the services you want to secure, you will want to select a YubiKey from the 5 Series instead.
Moreover, the YubiKey Bio-FIDO Edition has limited support for the following functions:
*The YubiKey Bio - FIDO Edition can be used with passwordless login and Entra ID.
**The YubiKey Bio - FIDO Edition is FIDO-only and is not capable of handling time-based one-time passwords (e.g. authenticator codes) within Yubico Authenticator. Yubico Authenticator can be used to manage passkeys, manage fingerprint templates, reset, and set/change the PIN on the YubiKey Bio - FIDO Edition.
Comparison
For more information about the differences between Yubico's product series, refer to the comparison chart here.
___________________________________________
What happens if I lose my YubiKey?
Best practice is to always have a backup YubiKey wherever possible, and for scenarios where backups aren't supported, to ensure you understand the account recovery policies for each service you are securing. However, if you do not have a spare key and lose your YubiKey, we encourage you to have another form of 2FA added to your accounts to prevent potentially being locked out.
Warning: If something happens to your YubiKey and you have no backup or recovery options to regain access to your account(s), you will need to contact the service provider(s) directly for account recovery assistance. Yubico has no optics into third party account access or any ability to assist in account recovery. Refer to this article for more information.
___________________________________________
How do I know if the YubiKey is compatible with my services?
Yubico provides the Works with YubiKey catalog to search for websites, services, identity providers and applications known to support YubiKeys for two-factor authentication. This resource is in no way exhaustive, but provides a good frame of reference when planning to secure access to your digital accounts. For services not found in the catalog, consider reaching out to the service to confirm whether they support the YubiKey, and referencing Yubico's complimentary assistance and resources to companies choosing to integrate YubiKey support into their solution here.
___________________________________________
Can I duplicate my YubiKey?
For security reasons, the YubiKey firmware does not allow stored secrets to be read, meaning it is not possible to “clone” or “duplicate” a YubiKey. In general, the process of creating a backup involves manually registering a spare key with all services the first YubiKey is registered with. However, there are a few credential types that, if backed up at the time of programming, can be programmed into a second key at a later date (using the spare/saved copy of the credential). For more information, refer to this article on spare keys.
___________________________________________
Can I use my YubiKey to protect my computer login?
You can use a YubiKey 5 Series, Security Key Series, or YubiKey Bio - FIDO Edition to protect data with secure access to computers. Yubico offers several computer login choices for organizations and individuals. Refer to this link and select your preferred computer login tool for an in depth setup guide.
___________________________________________
What is a YubiKey PIN?
Listed below are the basics of YubiKey PINs. If you want to read more about YubiKeys and PINs, refer to this article.
-
A YubiKey can have up to three PINs - one for its FIDO2/passkey function, one for PIV (smart card), and one for OpenPGP.
-
The PIV and OpenPGP PINs are set to 123456 by default, but there is no FIDO2 PIN set from the factory.
-
If you are being prompted for a PIN (including setting one up), and you're not sure which PIN it is, most likely it is your YubiKey's FIDO2 PIN.
-
If you are using a device from the Security Key Series, FIDO2/passkey is the only PIN you will be prompted for, as the Security Key Series does not support PIV (smart card) or OpenPGP.
-

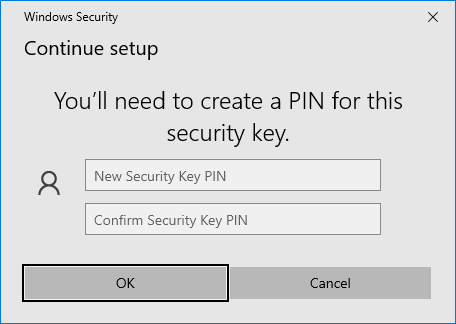

Shown below is an example of what a prompt to create a FIDO2 PIN on a YubiKey might look like in the Windows operating system.
___________________________________________
What are passkeys?
The term passkey is an amalgamation of the terms password and key, a simple but subtle way of highlighting its utility as an authentication mechanism as familiar and ubiquitous as the traditional password, but invoking the imagery of reliability associated with a sturdy lock and a physical key. A passkey is a passwordless digital credential utilizing the FIDO2 standard, allowing users to authenticate faster, easier and more securely to websites and applications than traditional passwords or weaker forms of multi-factor authentication. Passkeys can be created and stored on mobile devices, computers, hardware security keys and even synchronized to vendor cloud platforms. For more information, refer to this page.
___________________________________________
Can I use a YubiKey with my iPhone?
You can use iPhones 7 through 14 with compatible YubiKeys that have a Lightning connector or NFC. Beginning with the iPhone 15, you can use compatible YubiKeys that have a USB-C connector or NFC. The NFC on older iPhone models (pre-7) only works with Apple Pay. To work with a YubiKey, the NFC must have read and write capabilities (pre-7 only supports read). iPhones older than the iPhone 7 are only compatible with the YubiKey 5Ci (through the Lightning connector).
___________________________________________
Can I use a YubiKey with my iPad?
Do YubiKeys work with iPads with USB-C?
Yes, although it is important to confirm the YubiKey model's USB connector matches your iPad - in this case, USB-C (for example YubiKey 5C, YubiKey 5C NFC, Security Key C NFC, etc. - look for C in the product name).
If using Yubico Authenticator, ensure your iPad is on at least iPadOS 16.1 and Yubico Authenticator version 1.7.0 or newer is installed.
Do YubiKeys work with older iPads (with Lightning ports)?
For iPads with a Lightning port, the YubiKey 5Ci and YubiKey 5Ci FIPS are the only models that will work.
If using Yubico Authenticator, ensure your iPad is on at least iPadOS 16.1 and Yubico Authenticator version 1.7.0 or newer is installed.
___________________________________________
Does Yubico offer an education discount?
Yes! Go to YubiKey for Education and fill out the form on the right hand side. You will get a coupon code sent to your email address.
___________________________________________
Is the YubiKey I purchased genuine?
You can verify if your YubiKey is genuine here.
___________________________________________
Can I upgrade my YubiKey's firmware?
It is currently not possible to upgrade YubiKey firmware after manufacturing. To prevent attacks on the YubiKey which might compromise its security, the YubiKey does not permit its firmware to be rewritten or altered.
Yubico is dedicated to providing a long-term two-factor authentication solution, and Yubico is committed to making the YubiKey remain useful for the full extent of its lifetime. When new software versions are released, Yubico strives to ensure the new software is backwards compatible with previous firmware releases and even legacy YubiKey models.
___________________________________________
What is the YubiKey's account storage limit?
The YubiKey 5 Series supports 6 different protocols for two-factor authentication, each with its own limit on the number of accounts it can be associated with. Which protocol will be used with a given account varies from service to service (website, application, identity provider, etc.).
You can find setup instructions, as well as which protocol(s) a particular service uses on that service's entry in the Works with YubiKey catalog, (e.g. Google Accounts). The storage limits for each protocol are summarized below.
YubiKey 5 Series firmware 5.7+
-
FIDO2/Passkey - the YubiKey 5 can hold up to 100 discoverable credentials (i.e. hardware-bound passkeys) in its FIDO2 application.
-
FIDO U2F - similar to Yubico OTP, the FIDO U2F application can be registered with an unlimited number of services.
-
PIV* - the YubiKey 5's PIV (smart card) application has 4 usable slots per the PIV specification, each serving a specific purpose (authentication, digital signature, key management, and card authentication - click here for more information). In a Microsoft Windows environment and used in conjunction with the YubiKey Smart Card Minidriver, the number of usable certificates expands to approximately 12 (dependent upon many factors including algorithm used as well as various certification authority settings).
-
OATH-TOTP - the YubiKey 5's OATH application can hold up to 64 OATH-TOTP credentials (i.e. authenticator codes).
-
OTP - this application can hold two credentials. However, Yubico OTP, one of the most popular kinds of credentials to put in this app, can be registered with an unlimited number of services.
The OTP application can hold a maximum of two of the following credentials:
-
Yubico OTP
-
Challenge-response
-
Static password
-
OATH-HOTP
-
-
OpenPGP* - the YubiKey 5's OpenPGP application can hold up to 3 subkeys (signature, encryption, authentication) linked to a single OpenPGP identity.
*OpenPGP and PIV are less-commonly used than OTP, U2F, FIDO2, and OATH, especially by consumers.
YubiKey 5 Series with firmware 5.0-5.6
-
FIDO2/Passkey - the YubiKey 5 can hold up to 100 discoverable credentials (i.e. hardware-bound passkeys) in its FIDO2 application.
-
FIDO U2F - similar to Yubico OTP, the FIDO U2F application can be registered with an unlimited number of services.
-
PIV* - the YubiKey 5's PIV (smart card) application has 4 usable slots per the PIV specification, each serving a specific purpose (authentication, digital signature, key management, and card authentication - click here for more information). In a Microsoft Windows environment and used in conjunction with the YubiKey Smart Card Minidriver, the number of usable certificates expands to approximately 12 (dependent upon many factors including algorithm used as well as various certification authority settings).
-
OATH-TOTP - the YubiKey 5's OATH application can hold up to 64 OATH-TOTP credentials (i.e. authenticator codes).
-
OTP - this application can hold two credentials. However, Yubico OTP, one of the most popular kinds of credentials to put in this app, can be registered with an unlimited number of services.
The OTP application can hold a maximum of two of the following credentials:
-
Yubico OTP
-
Challenge-response
-
Static password
-
OATH-HOTP
-
-
OpenPGP* - the YubiKey 5's OpenPGP application can hold up to 3 subkeys (signature, encryption, authentication) linked to a single OpenPGP identity.
*OpenPGP and PIV are less-commonly used than OTP, U2F, FIDO2, and OATH, especially by consumers.
If you would like to know the account limits for a different Yubico product not listed above, such as the Security Key Series, refer to the device page for the specific model in the Yubico knowledge base Device Specifications section.
___________________________________________
What is a security protocol?
A security protocol is a set of standards that establish a way of performing security operations, typically authentication (logging in) in the case of YubiKeys.
Modern YubiKeys support six separate functions (while the Security Key Series only supports two), some with support for multiple protocols, as conceptually visualized below.
Listed below are the most popular protocols and a short explanation for each.
FIDO Universal 2nd Factor (U2F)
U2F was developed by Yubico and Google, and contributed to the FIDO Alliance after it was successfully deployed for Google employees. The protocol is designed to act as a second factor to strengthen existing username/password-based login flows. It’s built on Yubico’s invention of a scalable public-key model in which a new key pair is generated for each service and an unlimited number of services can be supported, all while maintaining full separation between them to preserve privacy.
Learn more about FIDO Universal 2nd Factor (U2F)
FIDO2
FIDO2 is the passwordless evolution of FIDO U2F. The overall objective for FIDO2 is to provide an extended set of functionality to cover additional use cases, with the main driver being passwordless login flows. The U2F model is still the basis for FIDO2 and compatibility for existing U2F deployments is provided in the FIDO2 specs. Another important distinction is the credentials are discoverable, and these credentials consume storage space on the YubiKey, while FIDO U2F does not,
OATH-TOTP
OATH is an organization that specifies two open authentication standards: TOTP and HOTP. To authenticate using TOTP, the user enters a typically 6 digit code that changes every 30 seconds. The code is generated using HMAC (sharedSecret, timestamp), where the timestamp changes every 30 seconds. The shared secret is often provisioned as a QR-code or preprogrammed into a hardware security key. TOTP stands for time-based one-time password. These credentials are typically accessed with and stored within software authenticators. A benefit of this protocol is that credentials can be duplicated across multiple devices or software authenticators as desired (although once a TOTP credential is stored on a YubiKey, you cannot then extract it to back up to another YubiKey or software authenticator.
Learn more about OATH – TOTP (time-based)
Yubico OTP
Yubico OTP is a simple yet strong authentication mechanism that is supported by the YubiKey 5 Series and YubiKey 5 FIPS Series out-of-the-box. Yubico OTP can be used as the second factor in a two-factor authentication login scenario or on its own providing strong single factor authentication.
___________________________________________
How do I use Yubico Authenticator and YubiKey Manager?
Yubico Authenticator
Yubico Authenticator allows you to store your authenticator application credentials on your YubiKey rather than on a device so that your secrets cannot be compromised. Yubico Authenticator requires a YubiKey 5 Series to generate OTP codes, as the YubiKey does not contain an internal battery and therefore cannot tell time. Additionally, basic management capabilities have been added to this application to set and change the FIDO2 PIN (including on the Security Key Series), create OTP credentials, reset YubiKey applications, etc. More information about Yubico Authenticator and how to use your YubiKey with authenticator codes can be found in the links below:
Yubico Authenticator is available complimentary here. for all major platforms (Windows, macOS, iOS, iPadOS, Android, and common distributions of Linux)
YubiKey Manager (CLI)
YubiKey Manager (CLI) is an advanced command-line interface, cross-platform tool for managing and configuring YubiKeys. It is intended for administrators only, specifically useful for bulk programming YubiKeys. It supports scripting and other advanced functions. YubiKey Manager (CLI) is available on Windows, macOS, and Linux. A full user guide for YubiKey Manager (CLI) is available here.
YubiKey Manager (CLI) is available complimentary here.
___________________________________________
My YubiKey is not working, what should I do?
To help identify several common issues with the YubiKey, you can follow the instructions listed below, depending on your device model:
Initial YubiKey troubleshooting
Initial Security Key troubleshooting
Additionally, Yubico offers a number of troubleshooting articles covering various use cases and applications here.
If the above resources do not resolve the issue(s) you are experiencing, consider opening a support case here.
___________________________________________
My YubiKey isn't working over NFC, what should I do?
If you're experiencing issues using our YubiKey over NFC, especially on a smartphone, the articles below cover troubleshooting NFC connectivity:
Placement tips on using NFC YubiKeys with smartphones
Troubleshooting NFC with YubiKeys and Security Keys
How to disable the NFC tag pop-up in iOS
Understanding the NDEF interface on NFC enabled YubiKeys
Setting the NDEF slot for NFC usage
___________________________________________
Where can I learn more about YubiKeys?
Yubico offers multiple resources for learning more about YubiKeys and supported software applications:
Yubico support knowledgebase - Contains setup guides, troubleshooting articles, and various other resources.
Yubico website - Provides a vast array of content covering use cases, cybersecurity learning, web store, white papers, case studies, best practice guides, blog, solution briefs, and various other topics, as well as software downloads.
Yubico documentation website - Access to Yubico hardware technical manuals, software user guides, datasheets.
Yubico developer website - Provides software downloads, detailed breakdowns of security protocols, implementation and integration guidance.
For ongoing updates, consider signing up for the Yubico blog or for product updates, you can consider subscribing for notifications on specific Yubico offerings here.
